Castings for where ordinary steel gives up

Reformers, fired heaters, kilns, crushers and reactors destroy plain steel three ways: heat, corrosion and wear. We cast the parts that hold up, plus the general steel castings around them, to your grade and standard. Here is the full range. Send a drawing for anything not shown.

Heat

Fired heaters and reformers run at 900 to 1,100 °C, where ordinary steel creeps and scales. Our heat-resistant grades hold their shape and strength.

HK40 · HH · HP-Nb · HF

Corrosion

Fuel ash and process gases eat into hot metal. High chromium-nickel grades resist the attack at temperature, in refinery and petrochemical service.

50Cr-50Ni-Nb · HN · SS316

Wear

Coal, clinker and ore grind steel away. Ni-hard, high-chrome and manganese grades take the abrasion at 400 BHN and above, and keep their edge.

Ni-hard / high-chrome · Mn steel

The parts

What we cast

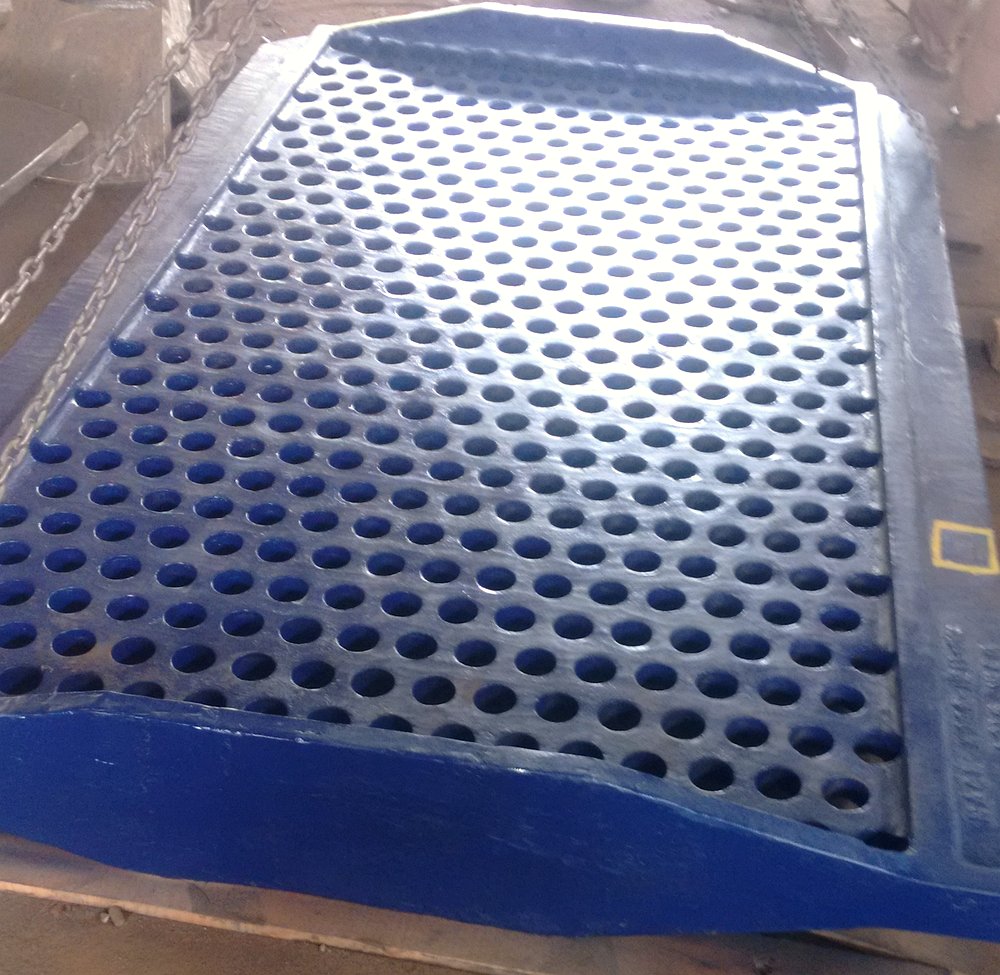

Cast reformer tube sheet with a full bored hole patternRefinery

Tube sheets

Reformer and heater tube sheets, bored to pattern, in HK40, HP-Nb and CT-15C.

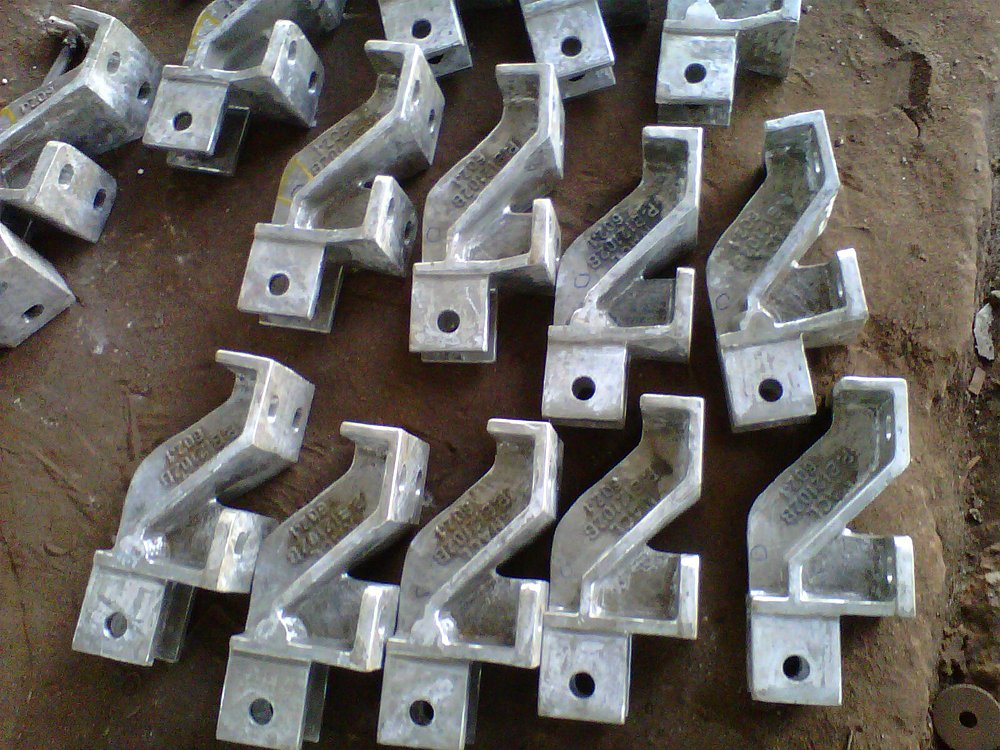

 Rows of cast HK40 tube-support hangers with cast-in grade and heat marksFurnace

Tube hangers & supports

Roof and wall hangers, brackets and locking bars for fired heaters, grade and heat cast in.

 Cast reformer manifold and x-mas tree assembliesReformer

Manifolds & x-mas trees

Reformer manifolds and x-mas tree assemblies in CT-15C and HP-modified grades.

 Cast furnace tubes, liners and cylinders for furnace and process serviceFurnace

Furnace tubes, liners & cylinders

Cast furnace tubes in U, W and Y configurations, plus centrifugal liners, sleeves and cylinders for furnace and process duty.

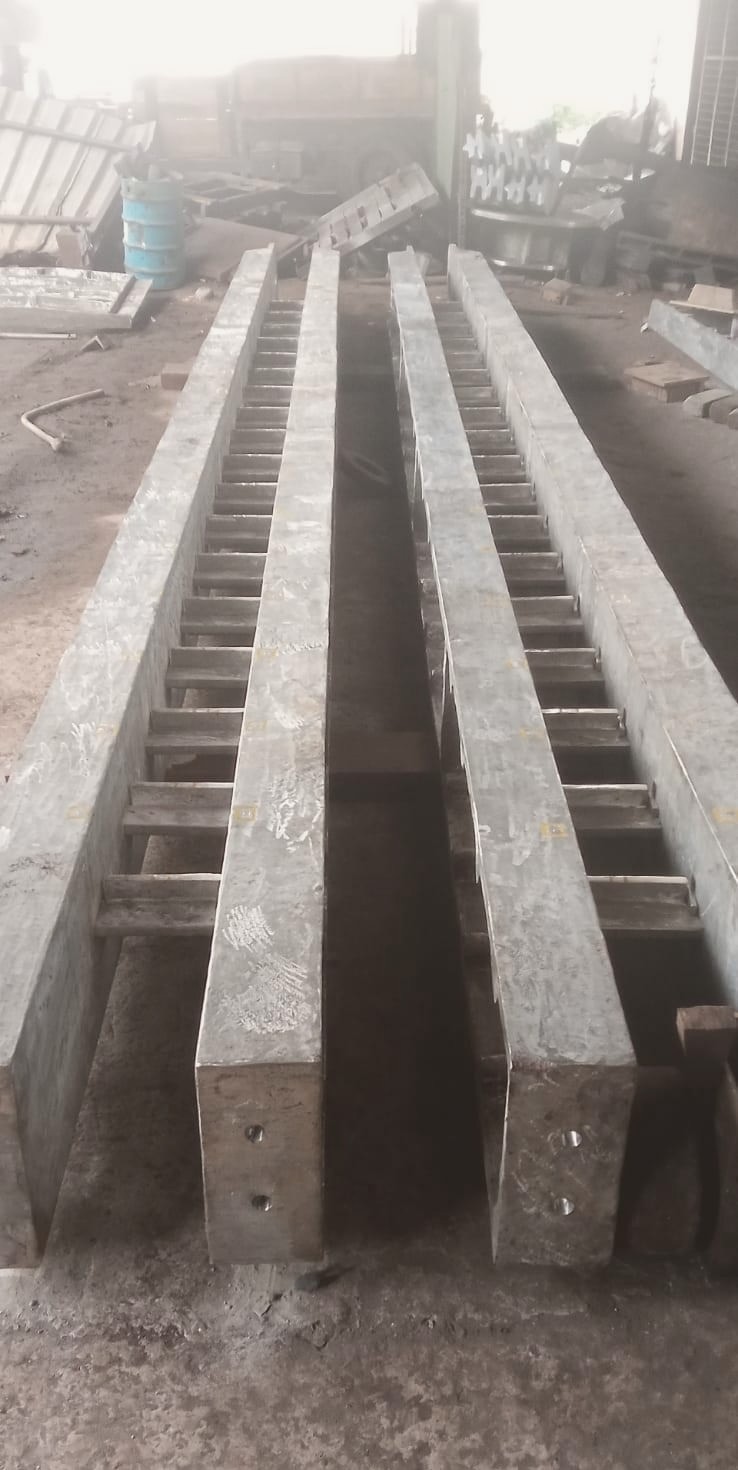

 Radiant ladder-type tube support castingRefinery

Tube support ladders

Radiant ladder-type tube supports for fired heaters, in HK40 and SS 310.

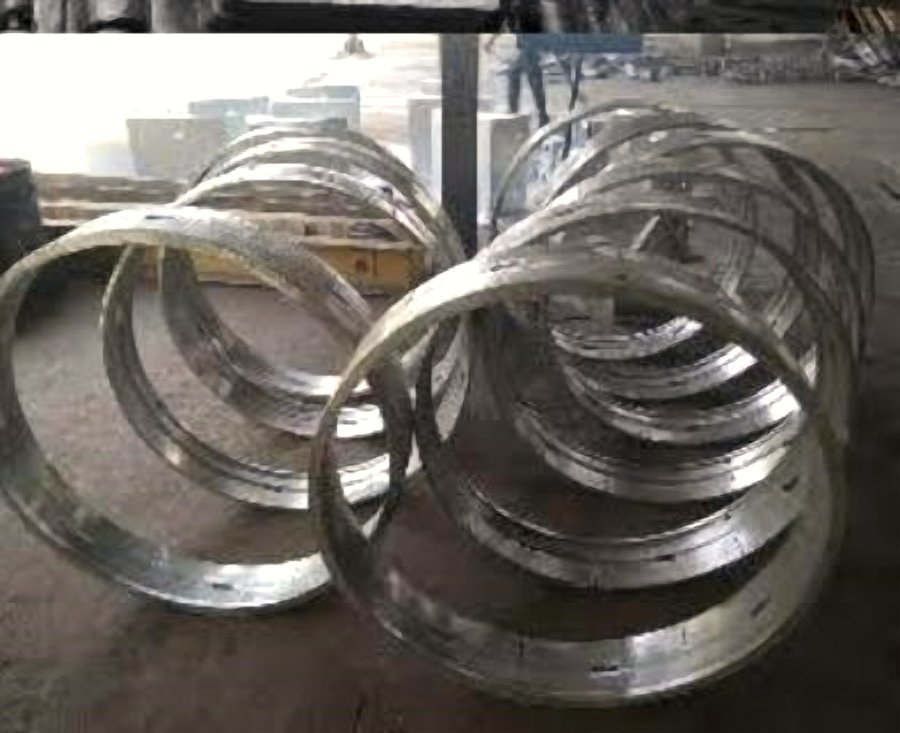

 Stacked centrifugally cast rings and sleeves on the shop floorCentrifugal

Rings & sleeves

Centrifugally cast rings, bushes and sleeves, in grades to 50Cr-50Ni-Nb, machined to fit or as-cast.

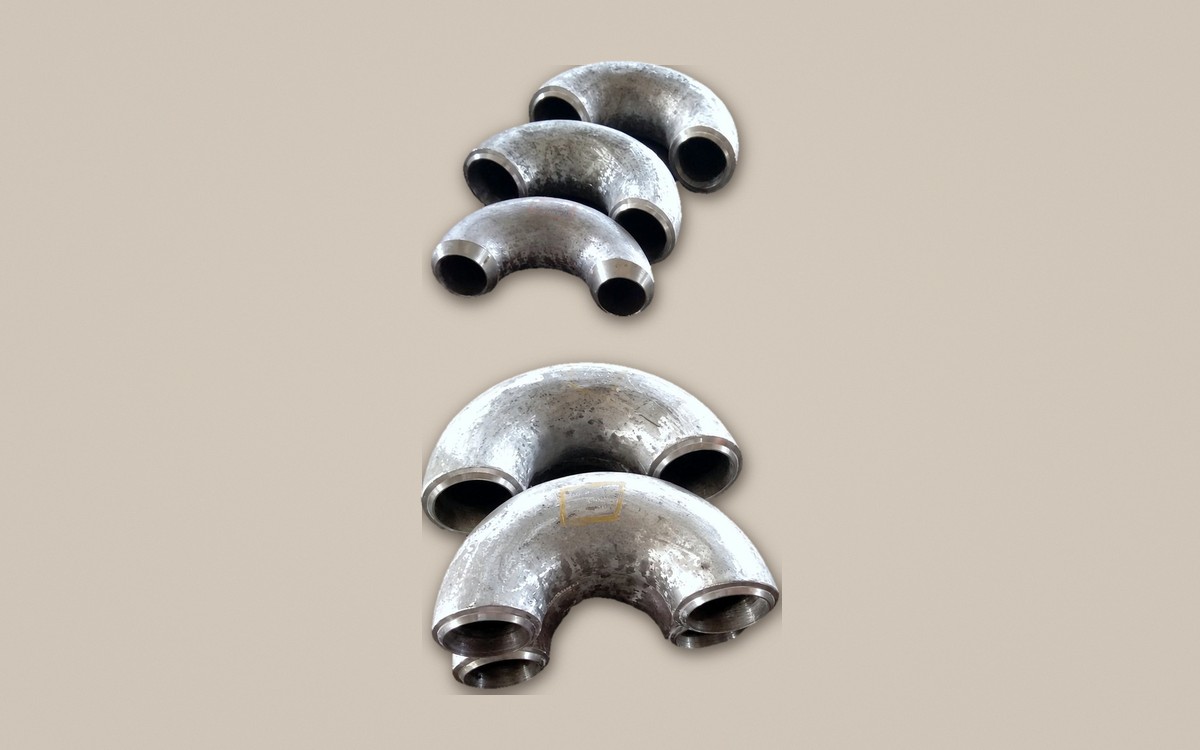

 Cast bends and elbowsPiping

Bends, U-bends & Y-pieces

Cast bends, elbows, U-bends and Y-pieces for high-temperature service.

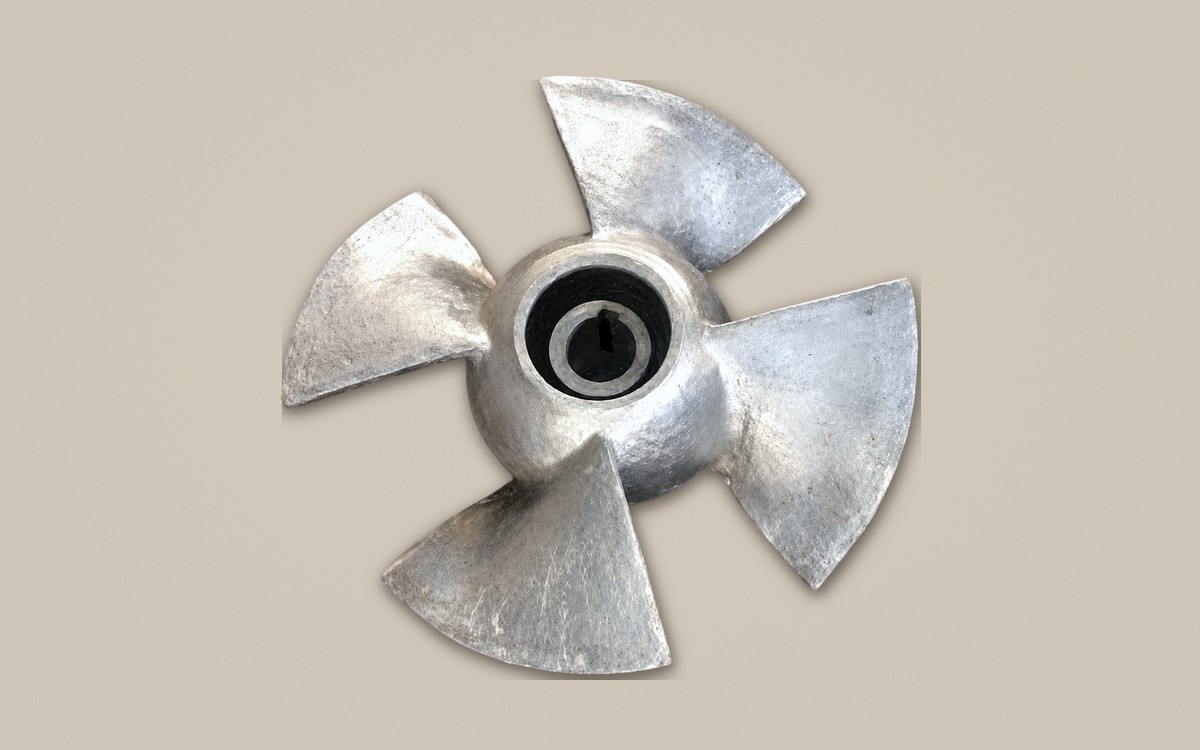

 Four-blade impeller castingProcess

Impellers

Wear- and corrosion-resistant rotating castings.

 Large single-piece hot coke bucket castingSteel

Hot coke bucket

Heavy single-piece castings for steel-plant duty.

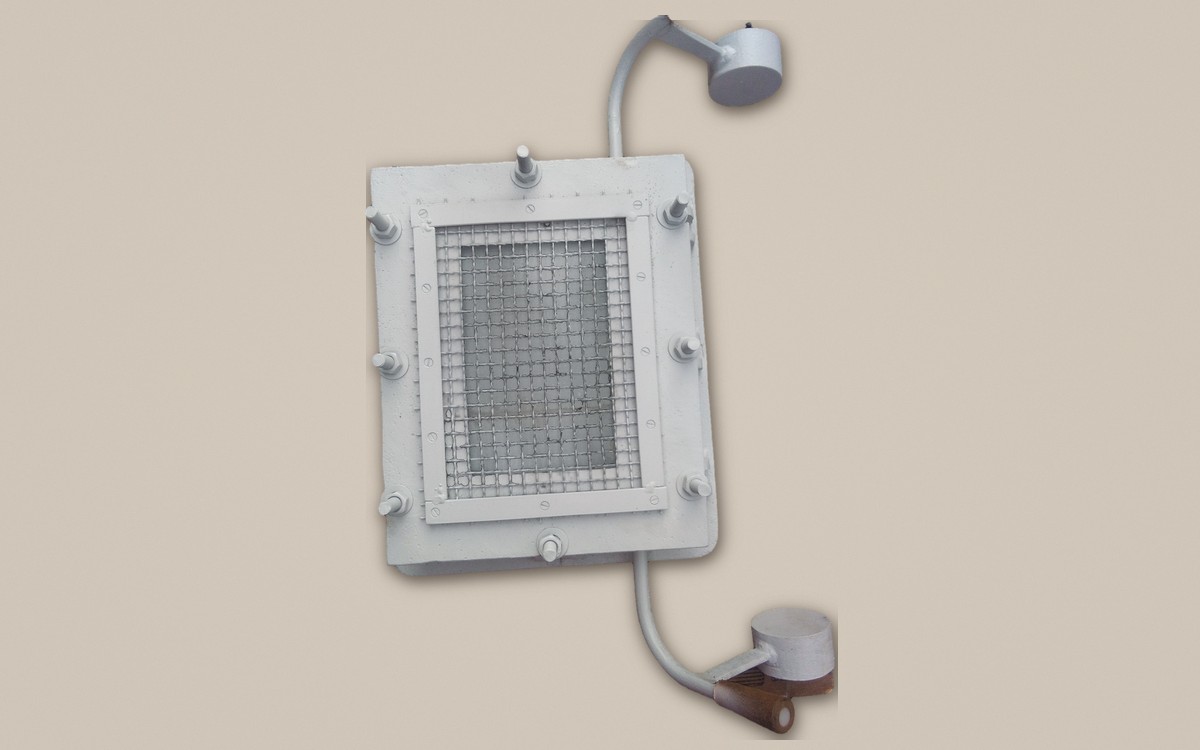

 Cast observation door frame for a fired heater, on the shop floorFurnace

Furnace & observation doors

Cast furnace doors, peep doors and observation-port frames for fired heaters and heat-treatment furnaces.

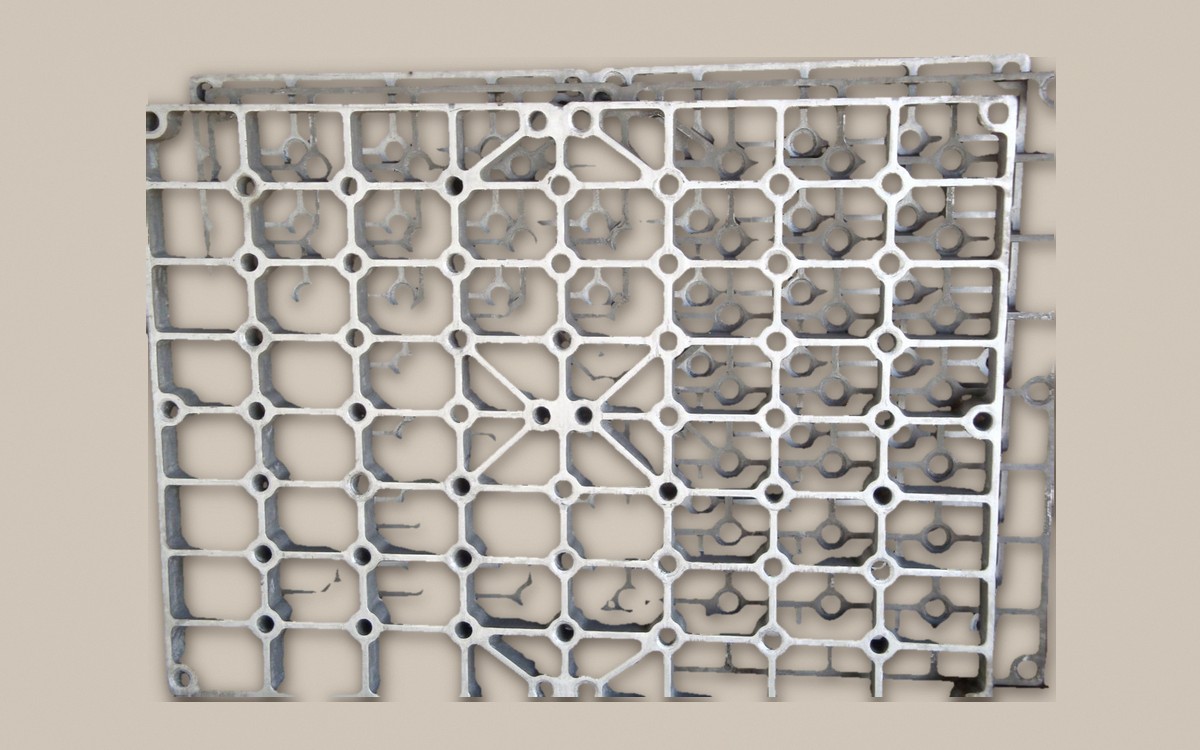

 Cast heat-treatment base tray with a grid patternHeat-treatment

Trays, grids & baskets

Heat-treatment base trays, grids and charge baskets in heat-resistant grades.

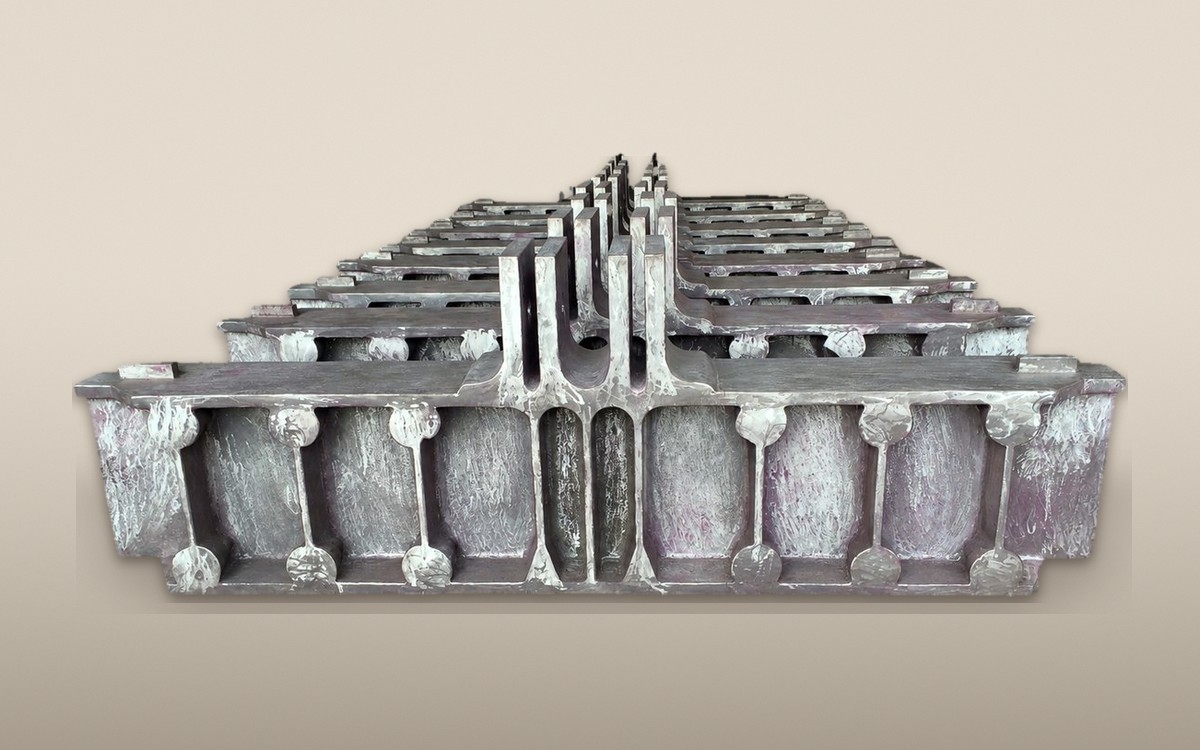

 Large ribbed furnace castings on the shop floorFurnace

Heavy furnace castings

Large single-piece ribbed castings for furnace structures, hearths and skids.

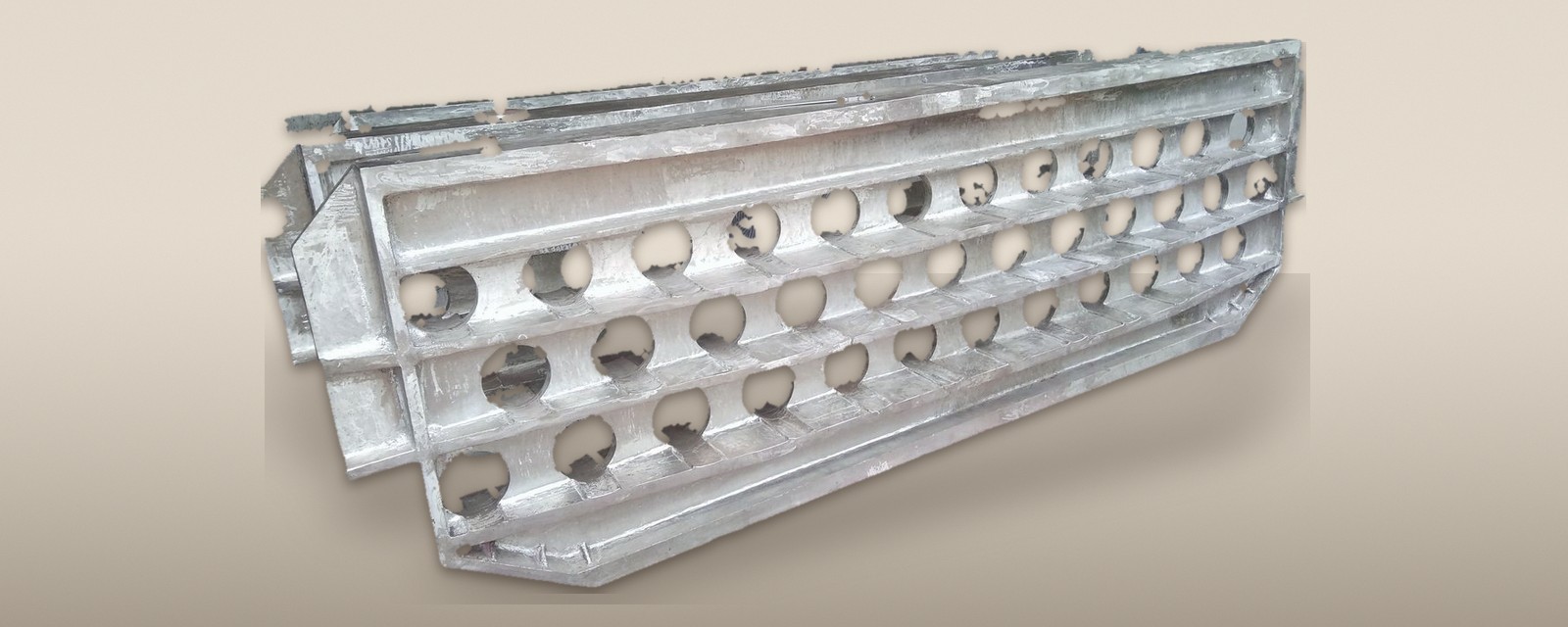

 Large cast tube-support assembly on the shop floorCustom

Your part, from your drawing

Send a drawing or a sample. We cast to your grade and standard, one-off or in series.
From the shop floorMore from the shop floor

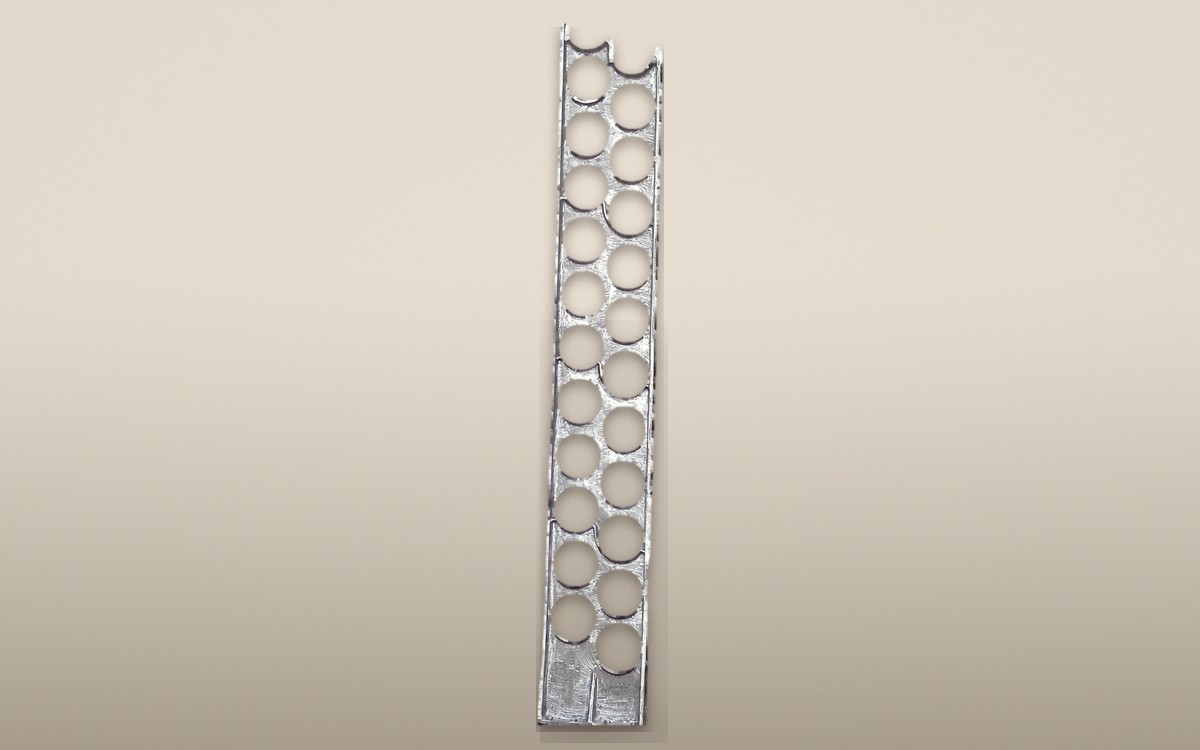

Tall tube support, at the Ni-Chrome worksRefinery

Tall tube support

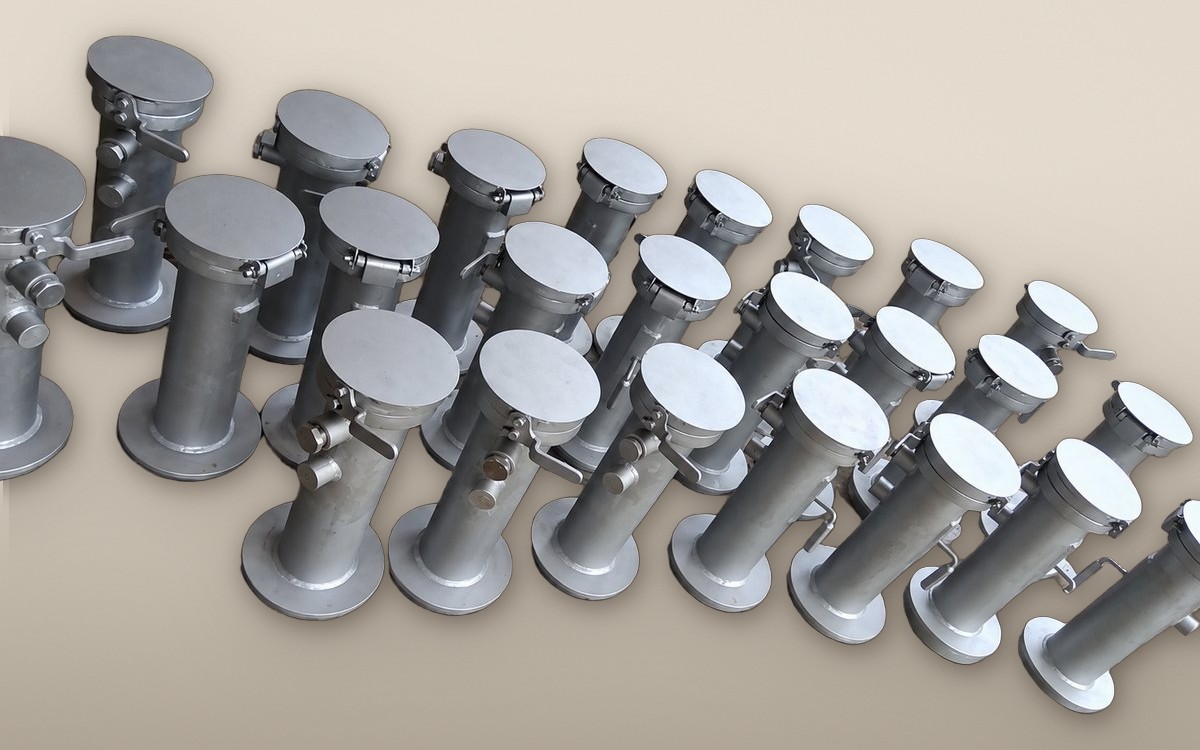

 Peep doors, at the Ni-Chrome worksFurnace

Peep doors

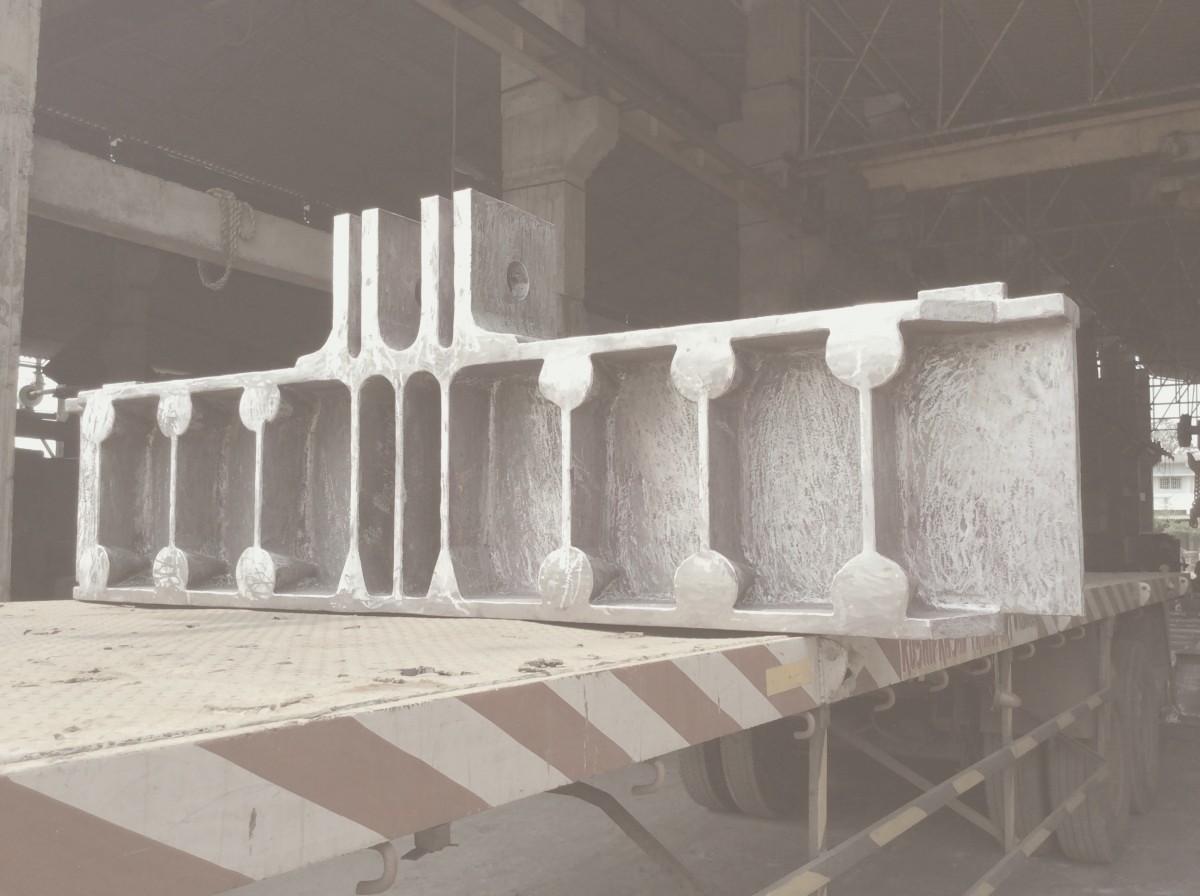

 Heavy casting, loaded for dispatch, at the Ni-Chrome worksDispatch

Heavy casting, loaded for dispatch

 Tube sheet, in blue primer, at the Ni-Chrome worksRefinery

Tube sheet, in blue primer

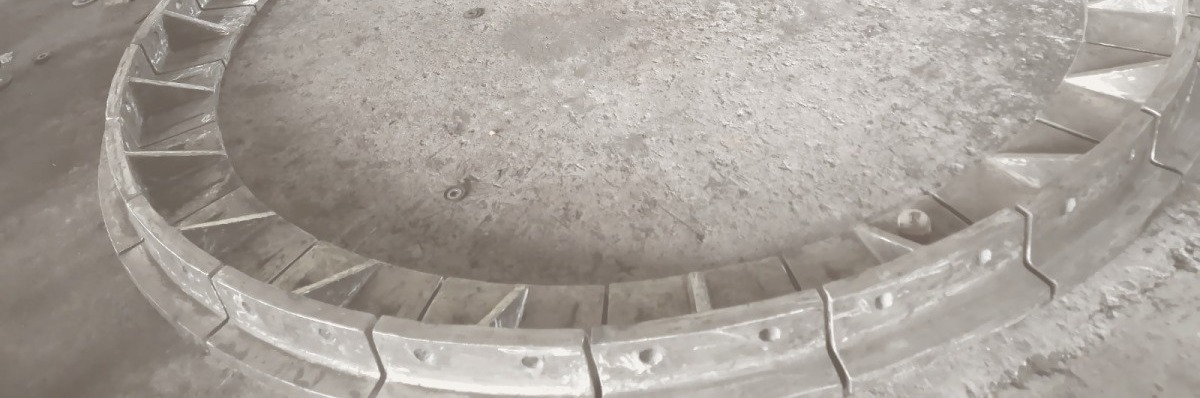

 Large segmented ring, at the Ni-Chrome worksFurnace

Large segmented ring

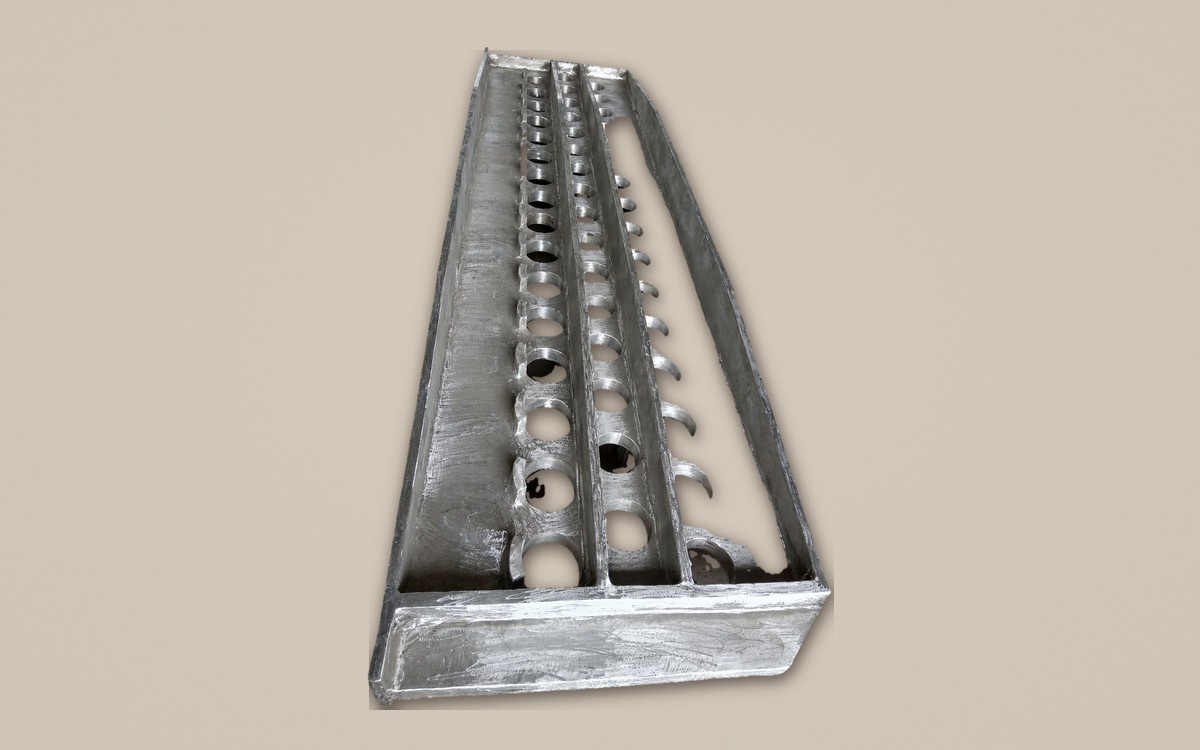

 Tube support in HP-Nb, at the Ni-Chrome worksRefinery

Tube support in HP-Nb

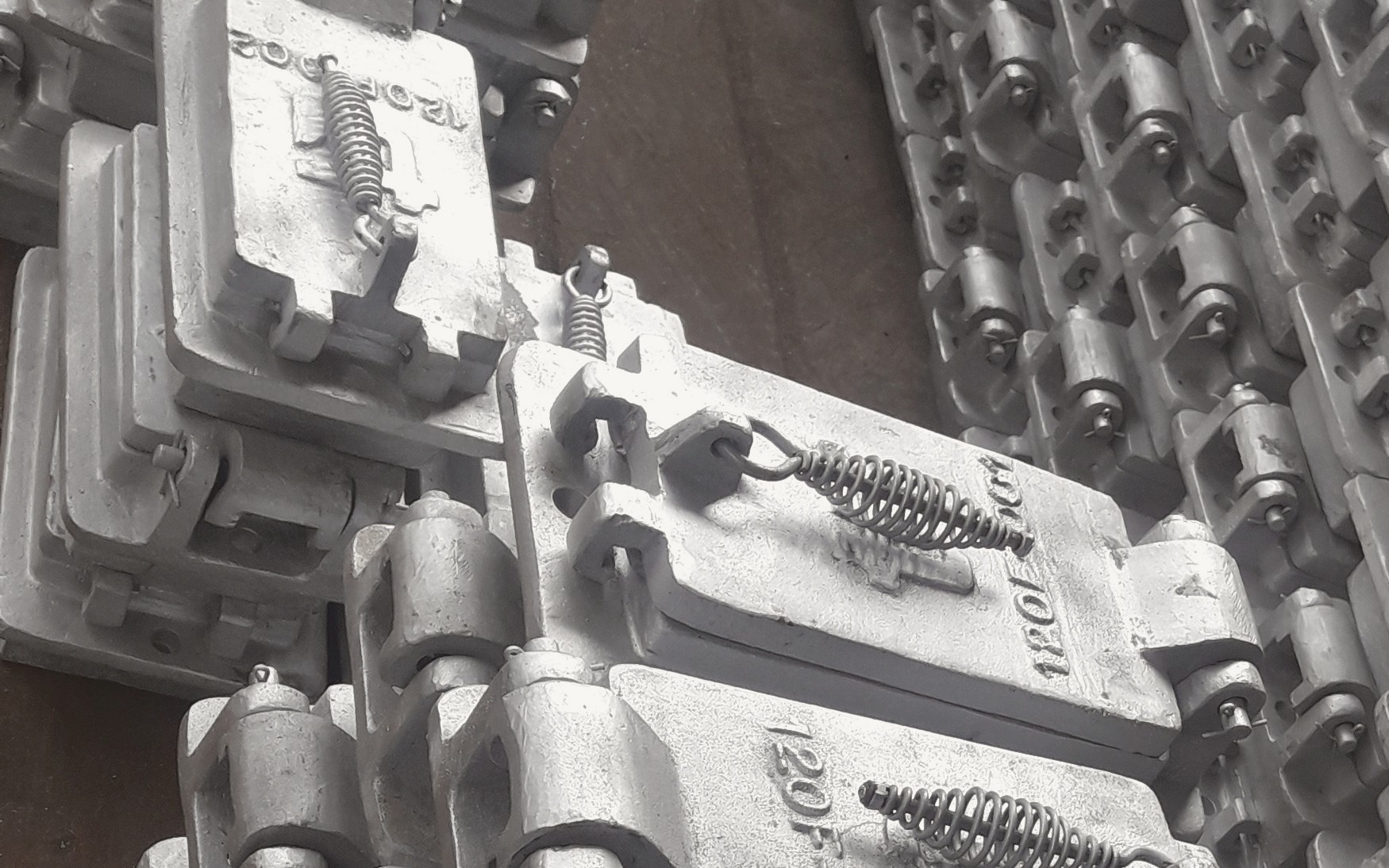

 Spring-loaded furnace doors, at the Ni-Chrome worksFurnace

Spring-loaded furnace doors

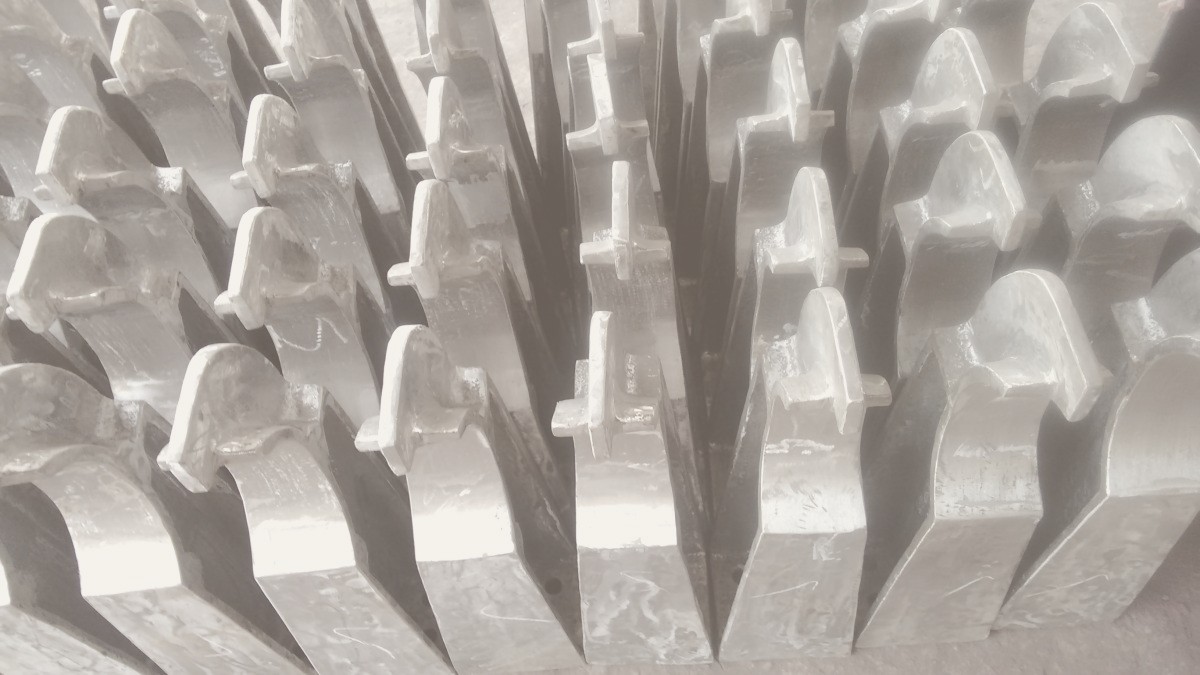

 Tube hangers in series, at the Ni-Chrome worksFurnace

Tube hangers in series

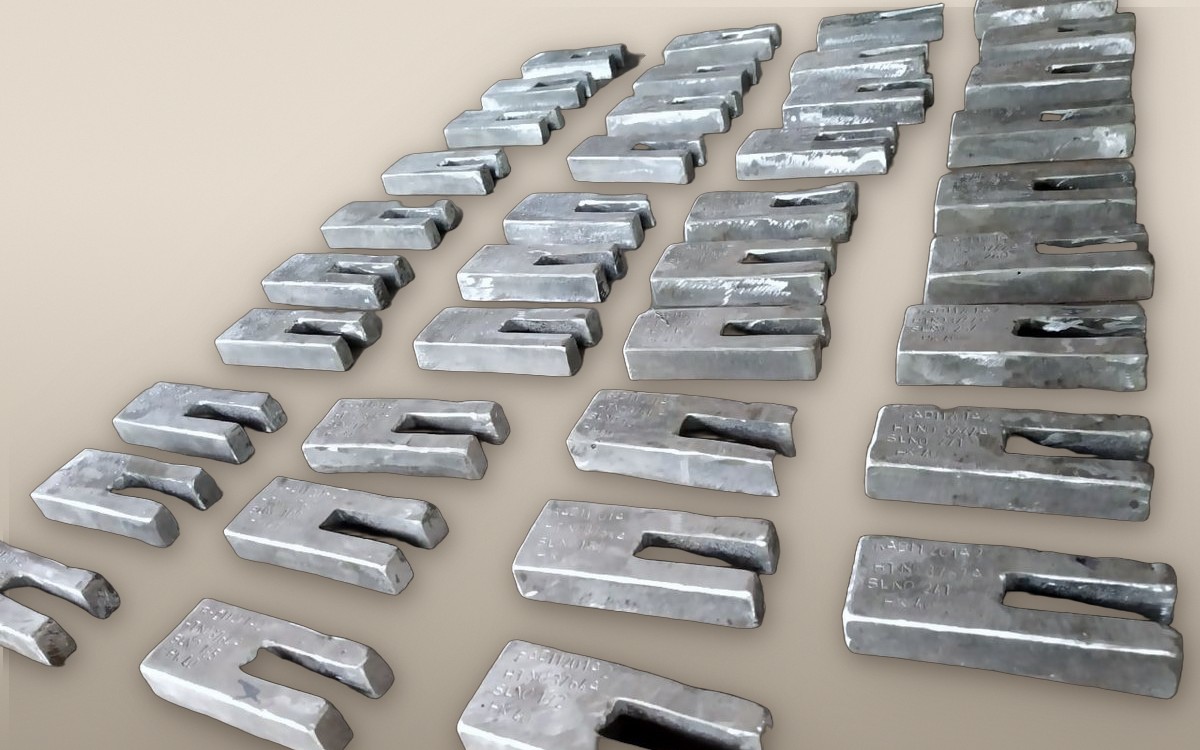

 Locking bars, at the Ni-Chrome worksFurnace

Locking bars

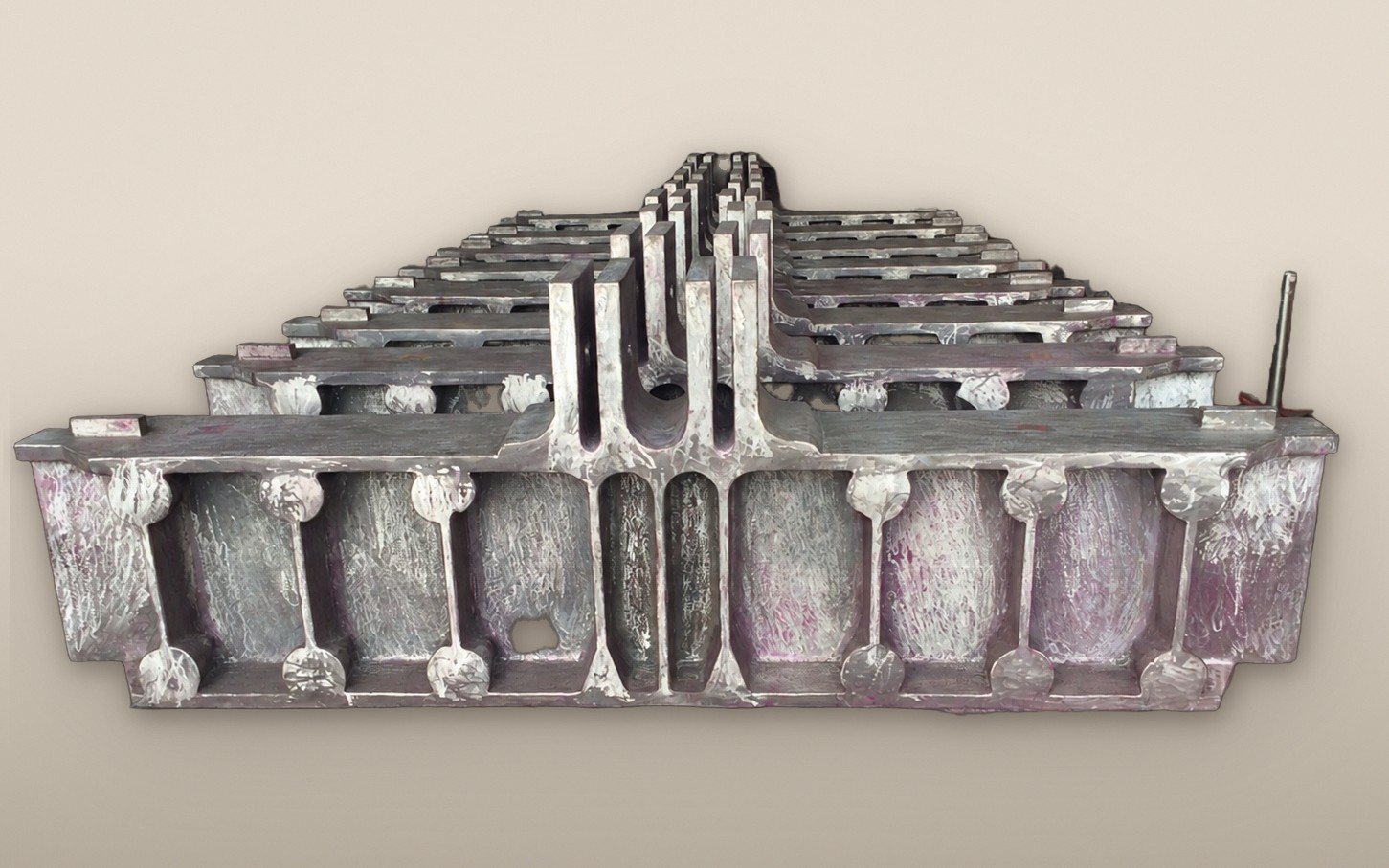

 Hearth frames, in series, at the Ni-Chrome worksFurnace

Hearth frames, in series

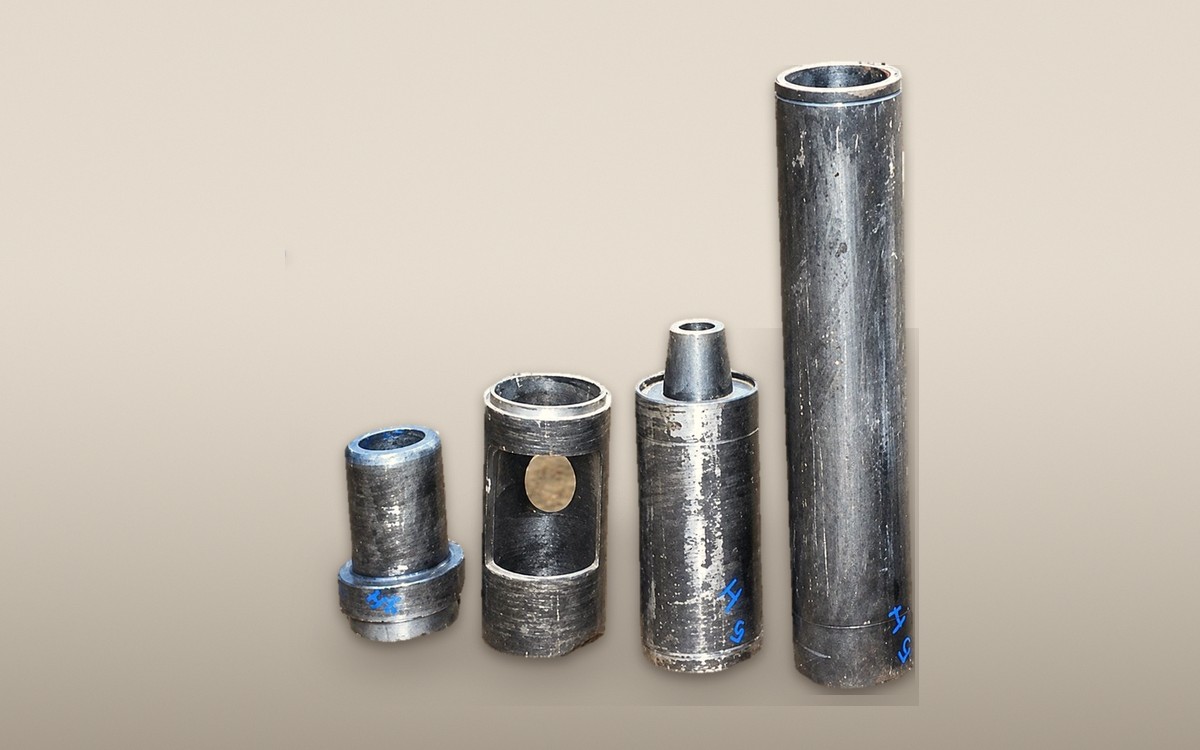

 Nozzles, at the Ni-Chrome worksProcess

Nozzles

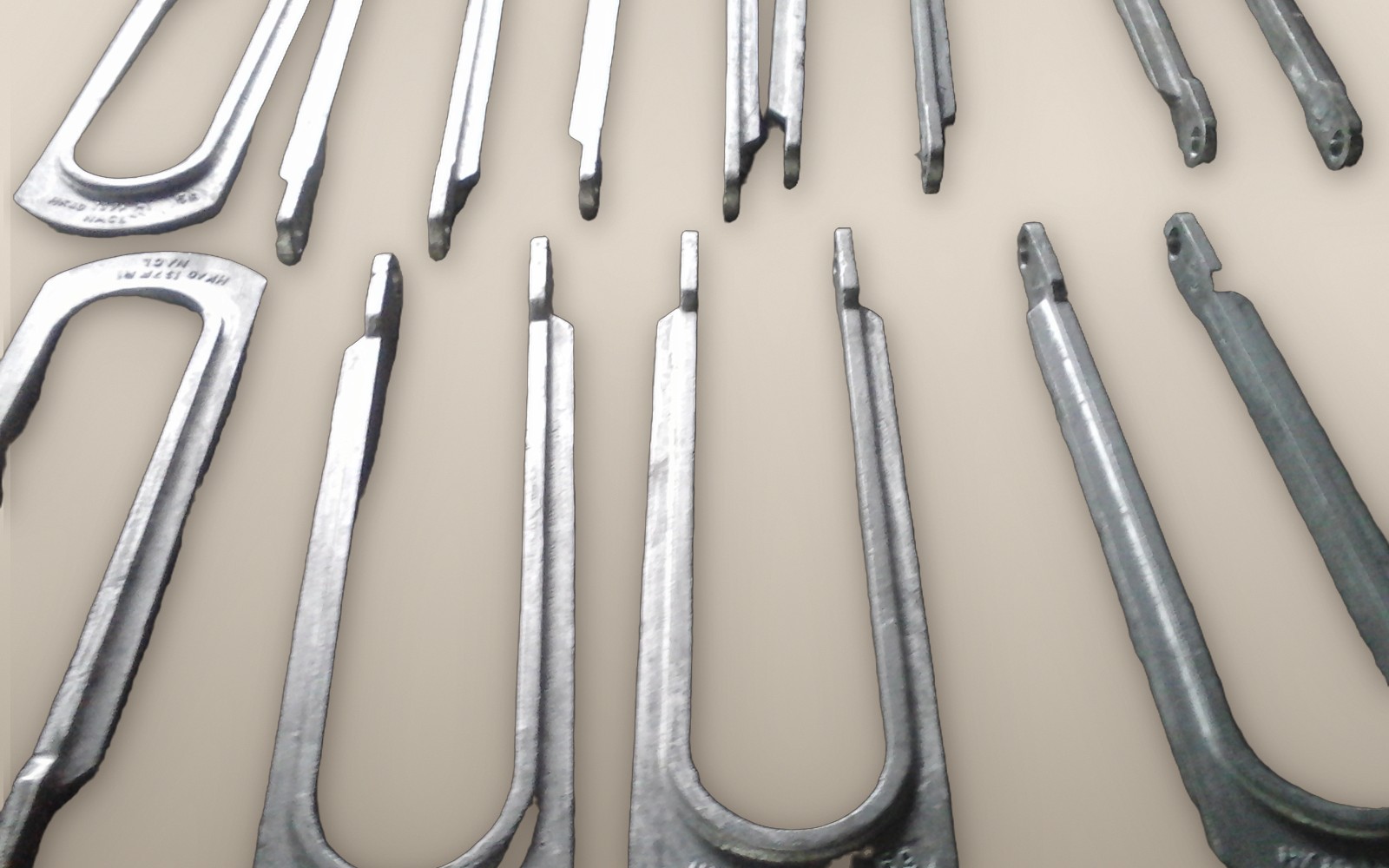

 U hangers, at the Ni-Chrome worksFurnace

U hangers

The full range

Every casting, by service and grade

Grouped by what the part has to survive. Cast to ASTM, ASME, BS or IS; machined, heat-treated and inspected in-house.

Heat-resistant castings

For fired heaters, reformers and furnaces where steel creeps and scales.

HK40 · HH · HP-Nb · HF · ASTM A351 / A297 · to ~1,100 °C

  • Reformer & heater tube sheets
  • Tube supports
  • Roof & wall tube hangers
  • Wall tube brackets
  • Beam supports
  • Manifolds
  • X-mas trees
  • Furnace tubes (U / W / Y)
  • U-bends
  • Y-pieces
  • Tube support assemblies
  • Locking bars
  • Hot screens
  • Nose rings

Enquire about heat-resistant castings →

Guide: what each furnace casting does and why it fails →

Heat-treatment & galvanizing hardware

Furnace and line hardware for heat-treatment shops and galvanizing lines, in heat-resistant and high-nickel grades, cast and centrifugal.

HK40 · HH · HP · high-Ni & cobalt grades · centrifugal & static

  • Radiant tubes (U / W / Y type)
  • Hearth furnace rolls
  • Walking-beam furnace rolls
  • Rider bars
  • Skid rails & buttons
  • Control cages
  • Charge baskets
  • Grids & trays
  • Galvanizing pot rolls
  • Sink & stabiliser rolls

Enquire about heat-treatment & galvanizing hardware →

Guide: furnace rolls, radiant tubes and pot rolls →

Corrosion-resistant castings

For fuel-ash and hot-corrosion service in refineries and petrochemical furnaces.

50Cr-50Ni-Nb (IN657 / A560) · HN · HP-Nb · SS316

  • X-mas tree assemblies
  • U-bends
  • Tube support assemblies
  • Tube sheets
  • Hot-corrosion furnace internals

Enquire about corrosion-resistant castings →

Wear-resistant castings

For coal crushing and grinding in thermal power and cement plants.

Ni-hard / high-chrome (IS 4771) · manganese steel (IS 276) · ~400-500 BHN

  • Pulverised-fuel carrying bends
  • Liner plates
  • Bull ring segments
  • Wear plates
  • Grinding bowls
  • Reducers
  • Clinker grinder liners
  • Bucket tooth points
  • Grinding discs (10-roll / 14-roll)
  • Crusher parts
  • Impact blades
  • Hammer tips

Enquire about wear-resistant castings →

General & engineering castings

Carbon, low-alloy and non-ferrous castings for steel plants, pelletisation, mining and general engineering.

WCB (A216) · WC9 (A217) · IS-grade steel & alloy steel · non-ferrous

  • Impellers
  • Valve bodies
  • Pig-casting-machine moulds
  • Chain links
  • Ceiling plates
  • Inlet & outlet tip castings
  • Clamping flanges
  • Transfer chute castings
  • Feed tube pipes
  • Pellet car assemblies
  • Grate bars
  • Furnace observation & peep doors
  • Blast furnace runners
  • Hot coke buckets
  • Tray-bottom castings

Enquire about general castings →

Guide: sinter grate bars and pallet parts →

Send a drawing / RFQ Ask our metallurgists

Bimetallic wear segment casting The signature product The Lohman bimetallic segment The Lohman group's kiln-seal casting for sponge-iron (DRI) rotary kilns, cast at Ni-Chrome: a tough backing and a hard wear face in one part, for long service life and less kiln downtime. Kiln-seal segments, stationary and rotary seals, wear segments.

Cast to ASTM, ASME, BS and IS. Every grade we cast, with UNS and EN designations, composition and service temperatures, is in the full grade reference →

Have a drawing or a grade in mind?

Send the spec and we'll come back with what it takes to cast it.

Ask our metallurgists
