Grades cast
Carbon & low-alloy (WCB, WC9) · HK40 · HP-Nb · CT-15C · 50Cr-50Ni-Nb · non-ferrous
Alloy & bimetallic castings · since 1982
Castings that survive the heat, corrosion and wear that destroy ordinary steel.
A Visakhapatnam foundry casting to your grade and standard, from carbon and alloy-steel castings to the heat, corrosion and wear-resistant super-alloys that ordinary steel can't survive. Every part is melted, cast, heat-treated and inspected in-house.
Standards
ASTM · ASME · BS · IS
Processes
Static · Centrifugal · Shell moulding
Approved
EIL · ISO 9001:2015 (TÜV NORD)

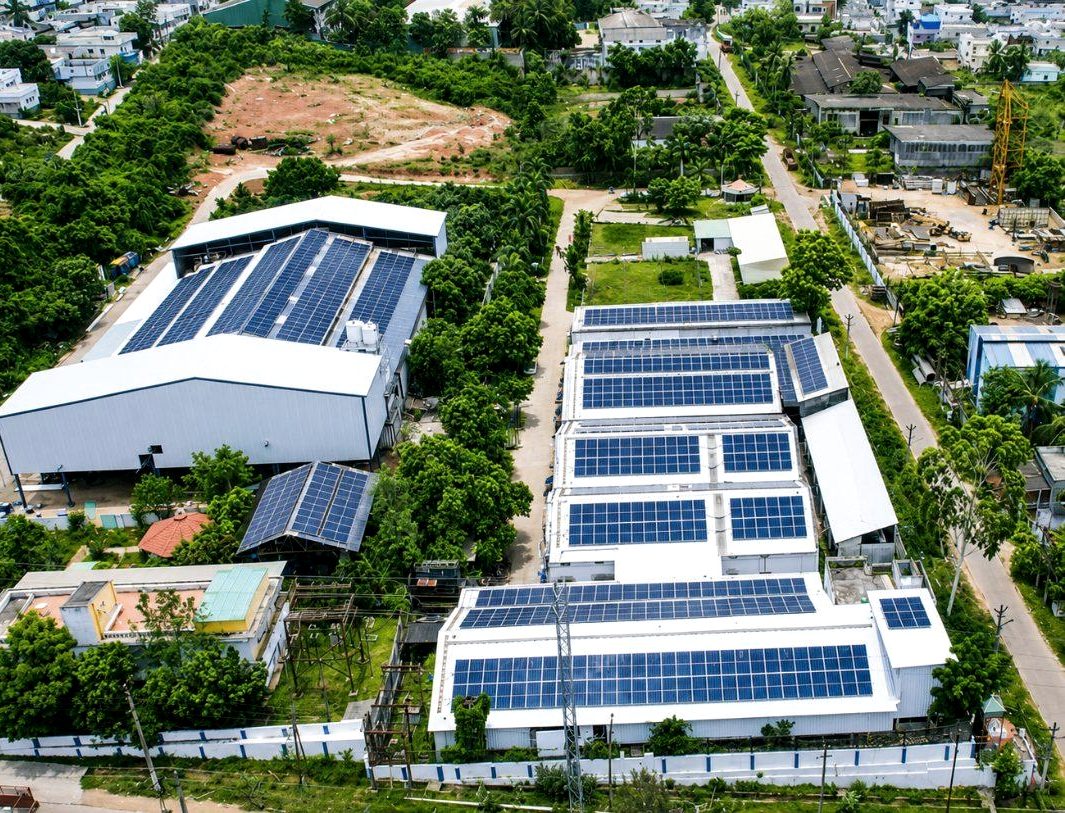

The works
Four decades of alloy casting
Melting, casting, machining, heat treatment and the metallurgical lab at our works in Visakhapatnam, under one roof.
What we cast
Components engineered for the furnace, the reformer and the reactor
From general carbon and alloy-steel castings to the parts that run hot, corrosive or abrasive. Cast to your grade and standard, then machined, heat-treated and inspected in-house.

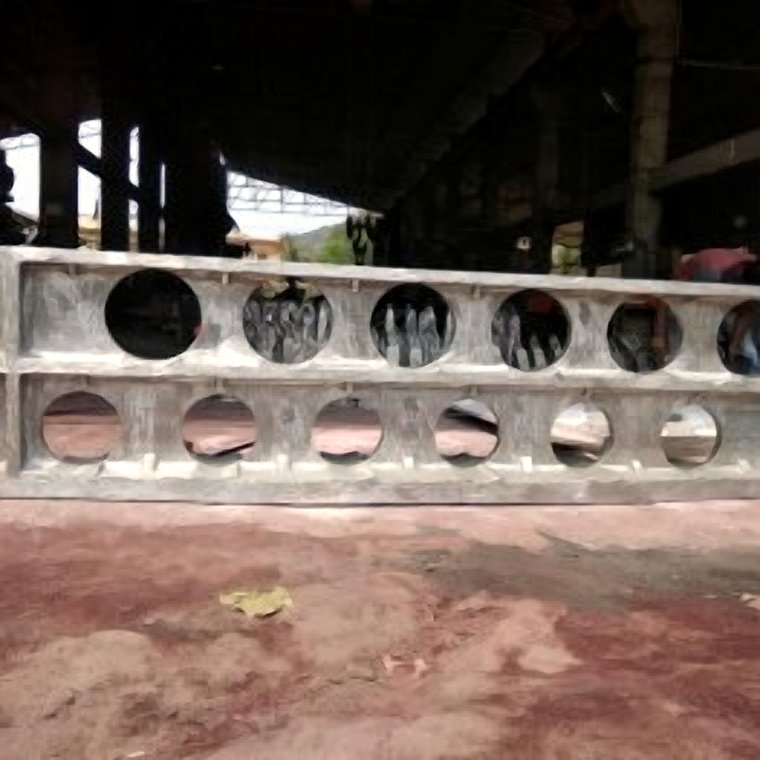

RefineryTube sheets
Reformer and heater tube sheets in HK40, HP-Nb and CT-15C.

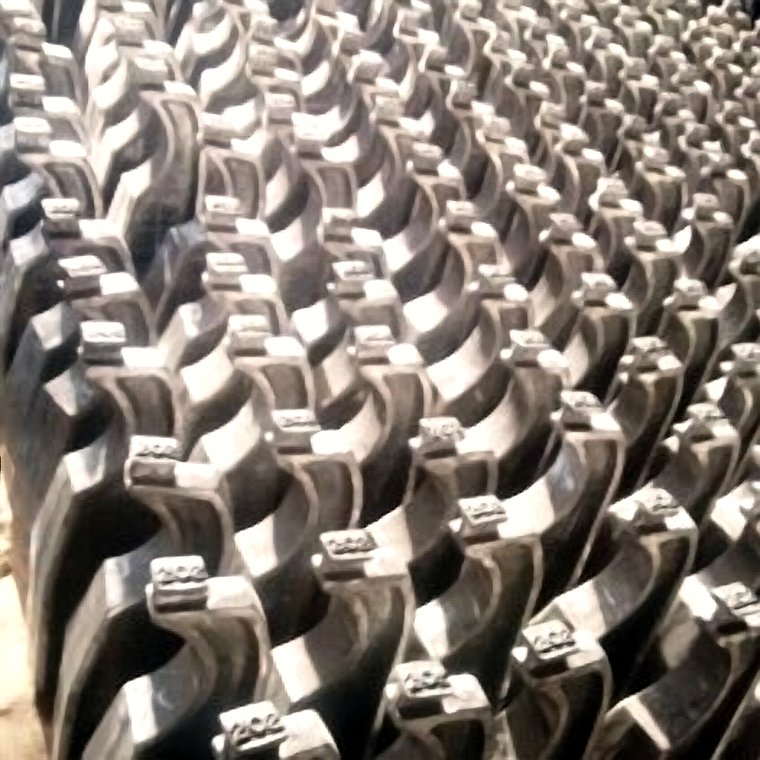

FurnaceRoof & wall tube hangers
Support castings for fired heaters and furnaces.

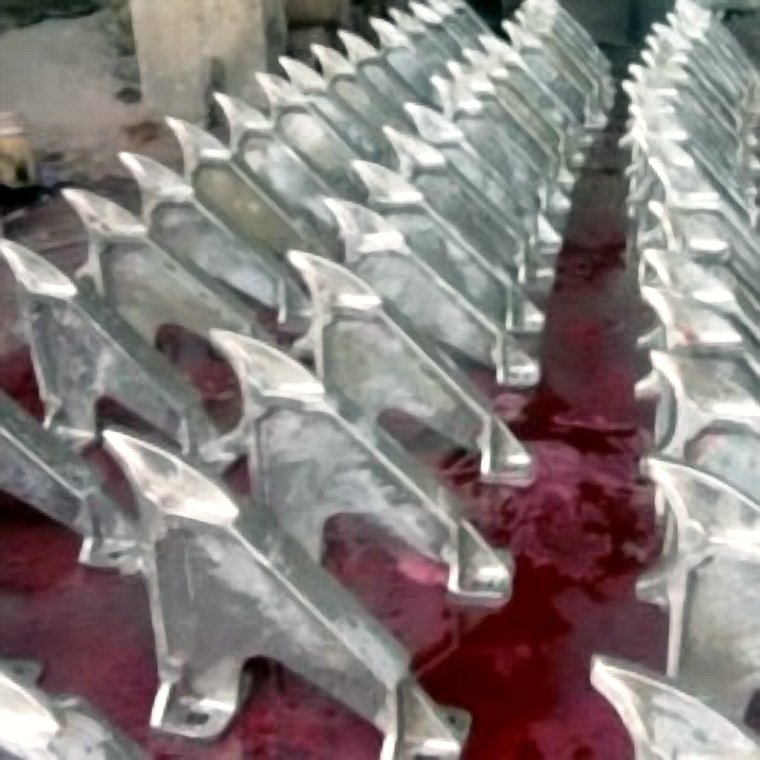

FurnaceTube supports & brackets
High-temperature support and locking castings.

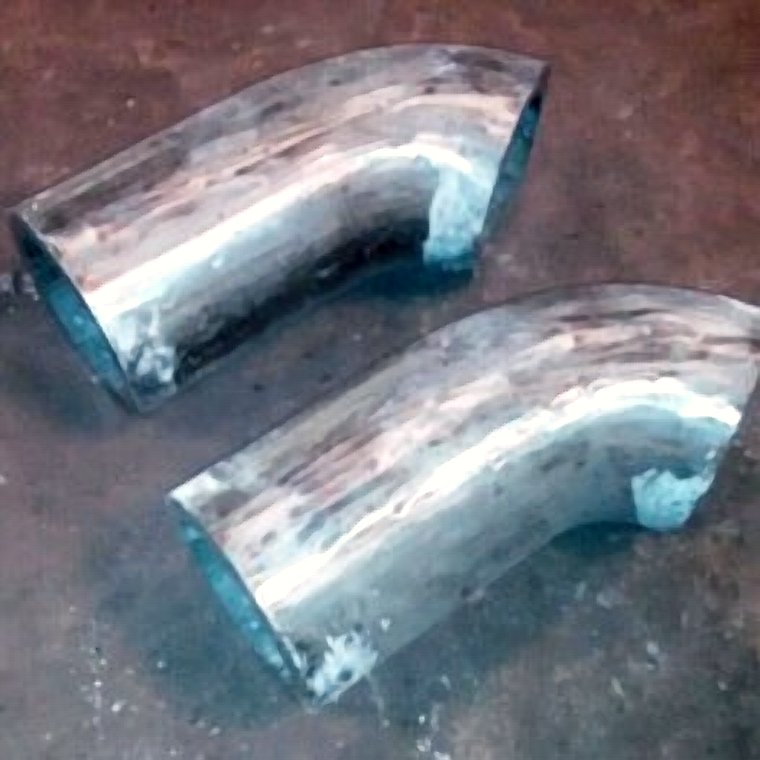

PipingBends & elbows
Cast bends for high-temperature service.

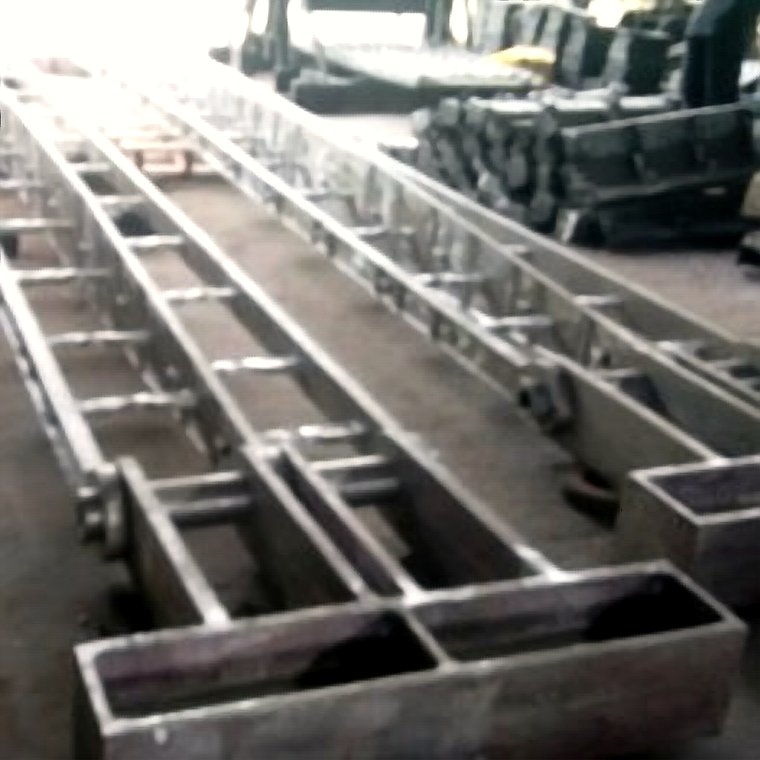

ReformerManifolds / Xmas trees
Cast reformer manifolds in CT-15C and HP-modified grades.

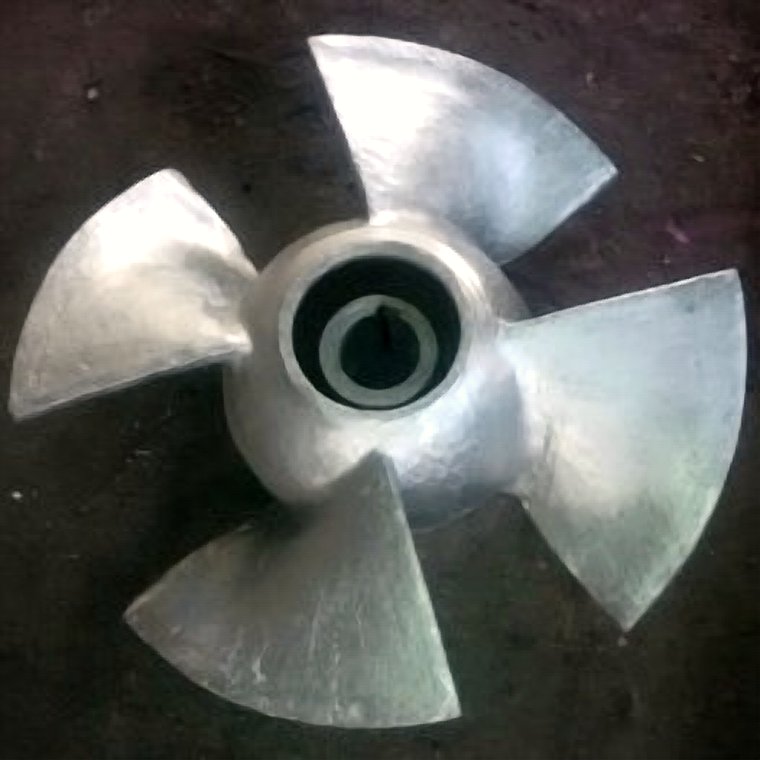

ProcessImpellers
Wear- and corrosion-resistant rotating castings.
SteelHot coke bucket
Heavy castings for steel-plant duty.

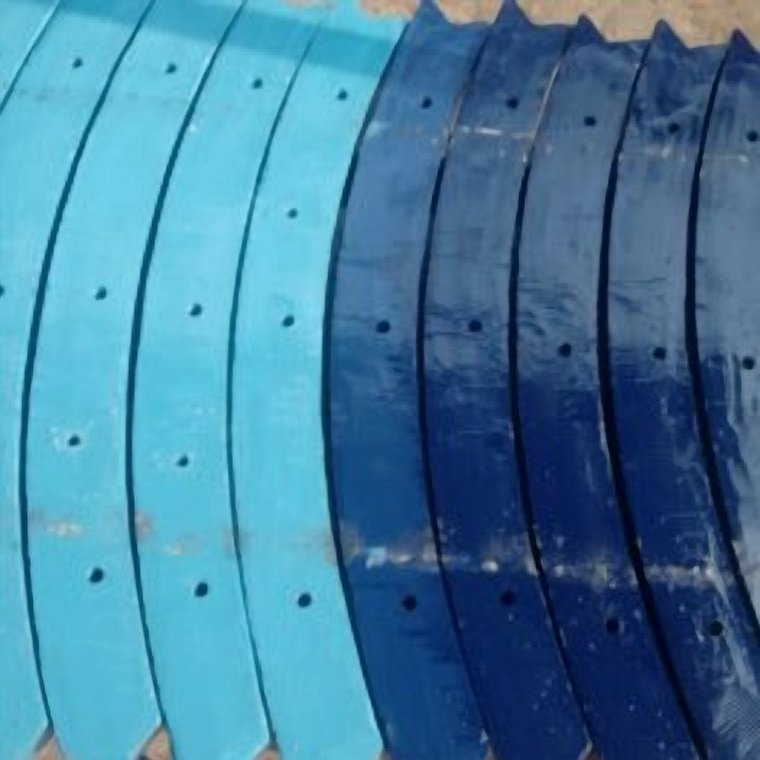

BimetallicBimetallic segment
The Lohman bimetallic segment for wear duty.
Cast in-house
Made here, to your drawing

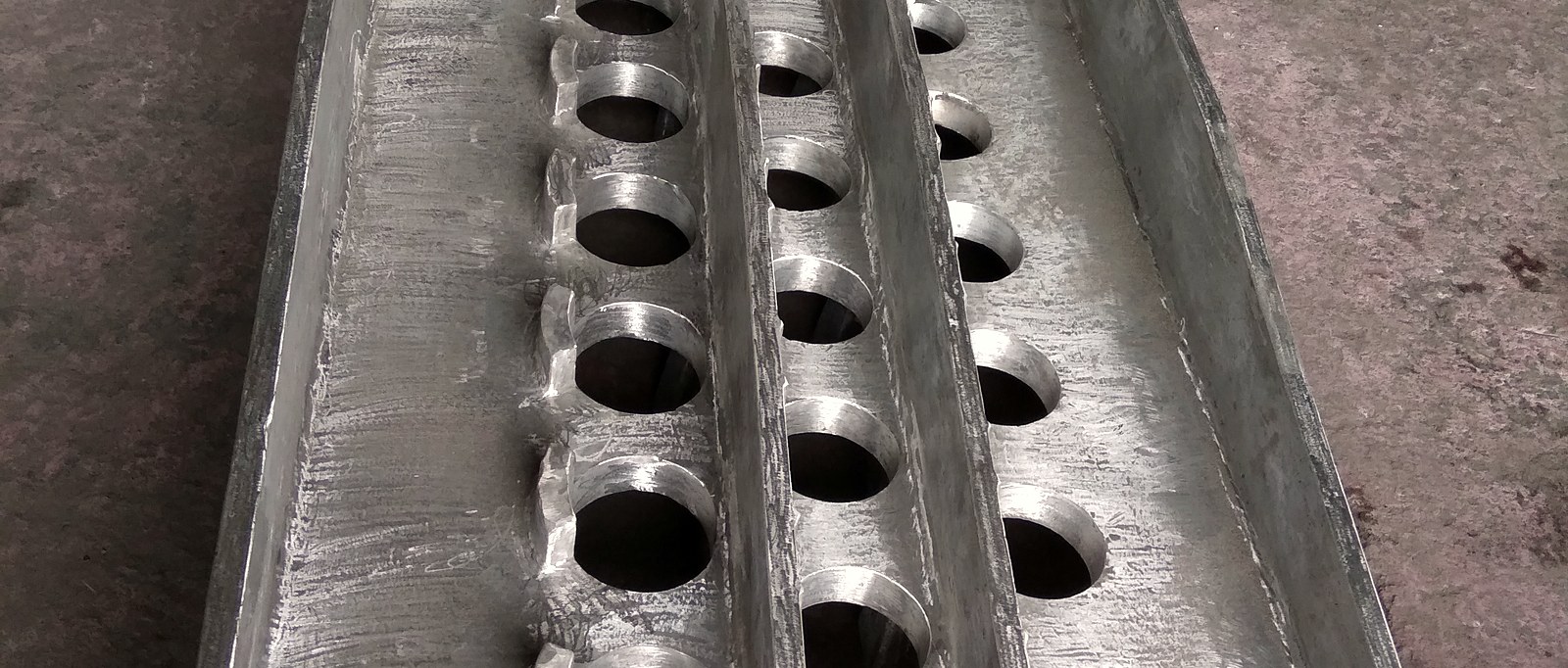

A reformer tube support in HP-Nb, cast, machined and inspected at our Visakhapatnam works.
Process capability
From melt to finished part, in one plant
Every casting flows through the same in-house chain: poured to grade, cast by the route that fits the part, then heat-treated, machined, tested and inspected before it ships.
Melt & pourInduction-melted, poured to grade
Static / sandAny form, heavy single-piece
Centrifugal, horizontalTubes, liners, cylinders
Centrifugal, verticalValve bodies, rings, wheels
Shell mouldingFine finish, tight tolerance
Heat treatmentSolution / age to spec
MachiningLathes, boring, drilling
Lab & NDTSpectro, radiography, creep
Physical QCDimensional & visual
Finished partsTube sheets, tubes, valve bodies, precise partsMaterial grades
Which alloy grades does Ni-Chrome cast?
Heat, corrosion and wear-resistant grades mapped to the designation you specify: composition, mechanicals and maximum service temperature. Figures are indicative. Full datasheets on request.
| Grade | ASTM | Type | Max service temp | Typical use |
|---|---|---|---|---|
| HK40 | A351 | 25Cr-20Ni heat-resistant | ~1,100 °C | Reformer / heater tube sheets |
| HP-Nb | A297 | 25Cr-35Ni Nb-modified | ~1,120 °C | Reformer service, higher creep strength |
| CT-15C | A351 | Ni-Cr-Nb | ~1,100 °C | Xmas trees, manifolds |
| IN657 | n/a | 50Cr-50Ni-Nb | ~1,050 °C | Fuel-ash / hot-corrosion service |
| A560 | A560 | 50Cr-50Ni-Nb | ~1,050 °C | Critical petrochemical (EIL grade) |
The table shows our heat-resistant grades. We also cast general carbon (A216 WCB), low-alloy (A217 WC9) and non-ferrous grades for less-severe service. Need a grade not listed, or a full datasheet? Ask our metallurgists →
Industries served
Where our castings run
Oil & petrochemical refineries
Reformer and heater internals, tube sheets, manifolds.
Steel plants
Furnace castings, hot coke buckets, wear parts.
Cement
Heat- and wear-resistant castings for kiln and cooler duty.
Fertilizer
Corrosion-resistant components for process plants.
Sponge iron / DRI
High-temperature castings for reduction plants.
Furnaces & fired heaters
Supports, hangers and internals for petro-chemical heaters.
Quality & inspection
Proof, not promises
Credibility here is earned in the lab and the inspection report, not a logo wall.
Approvals
EIL-approved
Cleared by Engineers India Limited for critical petrochemical-grade alloys, a status held by only a handful of Indian foundries.
Systems
ISO 9001:2015
Quality management system certified by TÜV NORD.
Lab & NDT
In-house testing
Optical-emission spectrometry, PMI, radiography, DPT, MPI, UT, hardness and high-temperature tensile / creep-rupture.
EILEngineers India Limited, approved for critical petrochemical-grade alloys
ISO 9001:2015Quality management, certified by TÜV NORD
OH&S managementOccupational health & safety system, aligned to ISO 45001
IBRIndian Boiler Regulations, boiler-grade castings
Third-party inspectionTo customer-nominated agencies (Lloyd's, BV, SGS, DNV, TÜV)
Have a drawing or a grade in mind?
Send the spec and we'll come back with what it takes to cast it.
